Chlorophyll a Sensor

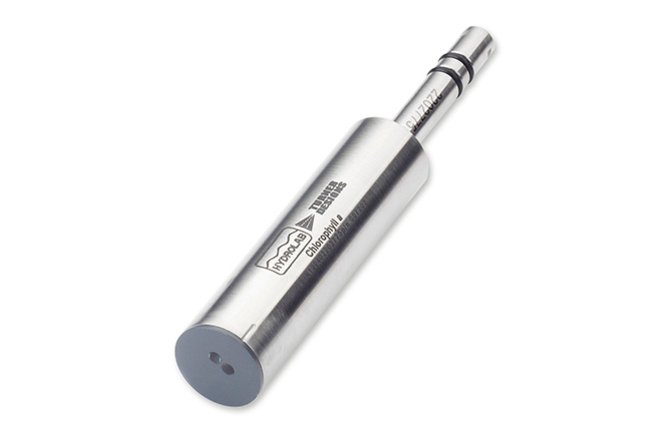

Chlorophyll a sensor from Hydrolab - water quality sondes

The chlorophyll a sensor from Hydrolab is based on the Turner Designs Cyclops-7 submersible fluorometer.

Request a quote or advice
  • Excellent turbidity rejection due to small sample volume design and high quality optical filters
  • Available with solid Secondary Standards to provide a quick and simple method to verify the sensor’s stability over time
  • The secondary standard can be adjusted to correlate to a known chlorophyll concentration
  • Three auto-selected gain ranges provide a wide measurement range of 0.03 to 500 µg/l for chlorophyll a
Fluorescence White Paper
Video - Chlorophyll a Sensor Calibration (No Secondary Standard) - EN
Video - Chlorophyll a Sensor Calibration (With Secondary Standard) - EN
Download PDF
Chlorophyll a Sensor
Range Low sensitivity: 0.03 …... 500 µg/L
Med. sensitivity: 0.03 ...… 50 µg/L
High sensitivity: 0.03 ...… 5 µg/L
Accuracy ± 3% for signal level equivalents of 1 ppb rhodamine WT dye or higher using a rhodamine sensor
Resolution 0.01 µg/L
