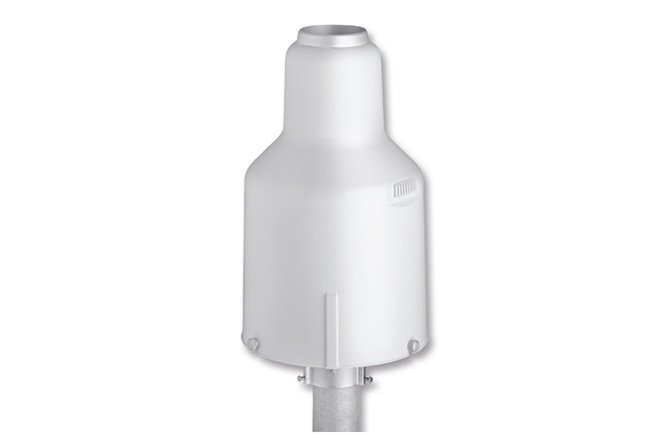

OTT Pluvio² L – Weighing Rain Gauge
All-weather, high accuracy rain gauge for continuous data collection
The OTT Pluvio² L is an all-weather precipitation gauge that uses superior weight-based technology to measure the amount and intensity of rain, snow, and hail. Developed in conjunction with industry-leading meteorological services, the OTT Pluvio² L employs a high-precision load cell and algorithms that compensate for wind, temperature, and evaporation, ensuring the highest accuracy precipitation measurements over time.
- Cumulative precipitation, precipitation intensity, bucket content in real time and non real time
- Weighing principle
- All-weather precipitation gauge without moving parts according to WMO guide line No. 8
- SDI-12 / RS-485, pulse
- Accurate measurement: precipitation accuracy within 0.004 inches with accumulation and intensity readings and filter algorithms to compensate for wind and temperature
- Virtually maintenance-free operation: lifetime factory calibration, drift-free measurements, and robust protective housing eliminate field visits for instrument service
- Multiple communication interfaces: SDI-12, RS-485, and Pulse Output options
- Solar panel power options make the instrument ideal for remote locations
- Easy software setup and a USB interface for communication with computer
- Wind protection shield available for particularly exposed locations
- Heated ring option available to prevent the accumulation of snow on the sensor
- Easy installation onto 4" pipes
- Precipitation Measurement: Continuous, real-time measurement of rain, snow, hail, and sleet in all monitoring environments, even remote environments without power supply
- Early Flood Warning: when combined with water level sensors, the Pluvio² L is the central component in an early flood warning system
- Urban hydrology: Even in the event of heavy rainfall of up to 3000 mm/h the Pluvio² L provides precise intensity values for controlling stormwater runoff to the sewer system.
|
|
|
|
||||||||||||||||||||||||||
|
netDL Templates - Configuration - for OTT Data Logger Operating Program
Templates for netDL Configuration shown in the OTT netDL configuration videos
|
|
|
||||||||||||||||||||||||||
|
|
OTT Pluvio² / OTT Pluvio² S / OTT Pluvio² L - Operating program
Version: V 1.08.7
Comments
|
OTT Pluvio² L - Firmware - EN
Version: V 1.06.2
Comments
|
||||||||||||||||||||||||||
|
OTT Pluvio² L - Konformitätserklärung | Declaration of Conformity | Declaration de Conformité
|
Protocol Description Precipitation gauge OTT Pluvio² L - RS-485 Interface with Modbus protocol (RTU)
|
TechTip: OTT netDL and Pluvio²
How to use the OTT netDL data logger together with the Pluvio² precipitation sensor
|
Download PDF
Download PDF
| Recordable precipitation | Liquid, solid, and mixed |
| Collecting area | 200 cm² / 400 cm² |
| Recordable precipitation amount | 1500 mm / 750 mm |
| Measurement method | Weighing measurement method |
| Sensor element | Sealed load cell |
| Measuring ranges | |
| Precipitation | 0 ... 50 mm/min or 0 ... 3000 mm/h |
| Cumulative precipitation threshold at 60 min collection time | 0.05 mm/h |
| Precipitation intensity threshold | 0.1 mm/min or 6 mm/h |
| Accuracy (at -25 ... +45 °C ) | |
| Amount | ±0.1 mm or ±1 % of measured value |
| Intensity | ±0.1 mm/min, ±6 mm/h or ±1 % of measured value |
| Resolution | |
| SDI-12- and RS-485 interface | 0.01 mm, 0.01 mm/min or mm/h |
| Impulse output | 0.05/0.1/0.2 mm |
| Measurement intervals | |
| Intensity output interval | 1 minute |
| Query interval | 1 minute ... 60 minutes |
| Output delay | |
| Real-time (RT) | < 1 minute |
| Non real-time (NRT) | 5 minutes |
| Output data | |
| Measurement output | Intensity RT, amount RT/NRT, amount NRT, amount total NRT, bucket content RT and NRT, temperature load cell |
| Status output | OTT Pluvio² L Status, Heating status (if present) |
| Interfaces | |
| Digital interfaces | SDI-12 V1.3, RS-485 2- or 4-wire (SDI-12 protocol and ASCII) |
| Digital outputs (2/5 Hz) | Impulse: 0.05/0.1/0.2 mm (adjustable) Status: 0 ... 120 impulses/min |
| USB | USB 2.0 (for service mode) |
| Electrical data | |
| Power supply | 5.5 ... 28 VDC, typically 12 VDC |
| Current consumption | typ. 9.2 mA at 12 V (without heating) |
| Power consumption | ≤ 110 mW (without heating) |
| Ring heating, optional | |
| Power supply | 12 ... 28 VDC, typ. 12/24 VDC |
| Current consumption | Puvio² L 200: typ. 2.1 A; max. 2.2 A Puvio² L 400: typ. 4.2 A; max. 4.4 A |
| Power consumption | |
| Pluvio² L 200: | max. 50 W at 24 VDC; max. 12.5 W at 12 VDC |
| Pluvio² L 400 | max. 100 Watt at 24 VDC; max. 25 Watt at 12 VDC |
| Modes of operation | Disabled, continuously enabled, continuously enabled within a specified temperature range, US NWS standard (time-controlled), enabled in case of precipitation (adjustable after-run time) |
| Dimensions and weight | |
| Pluvio² L 200 (Ø x h) | 450 mm x 752 mm |
| Pluvio² L 400 (Ø x h) | 450 mm x 677 mm |
| Pedestal (Ø) | 4'' |
| Weight (bucket empty) | 16 kg / 16.6 kg |
| Material | |
| Base plate | Stainless steel / aluminium |
| Collecting bucket | Polyethylene |
| Bucket support, pipe housing | ASA, UV-resistant |
| Environmental conditions | |
| Temperature, in operation | - 40 ... +60 °C |
| Temperature, storage | -50 ... +70 °C |
| Relative humidity | 0 ... 100 % (non-condensing) |
| Protection | |
| Housing (closed) | IP65 |
| Housing (open) | IP63 |
| Load cell | IP68, resistant to salt fog |
| Standards | EMV: 2004/108/EG; EN 61326-1:2013 |
