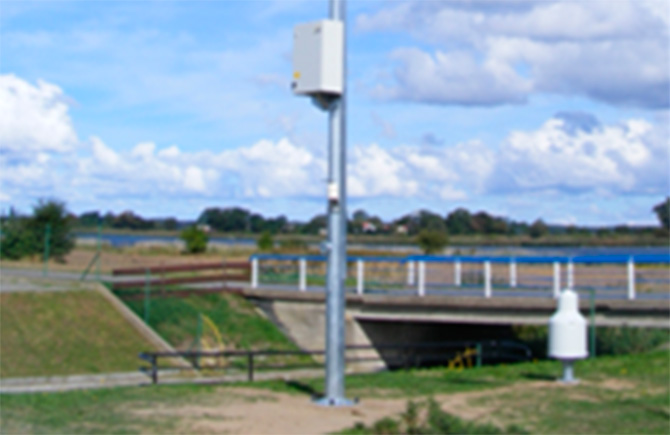

Pilot station for “Complex flood protection program Zulawy 2030”, Gdansk – Poland
Complete monitoring solution with OTT LogoSens2, OTT CBS, OTT Pluvio2 and meteorological sensors

Zulawy is a region which is located in the delta of Vistula River in north Poland. The area of Zulawy is about 175 000 ha, almost 26 % of which is situated below the sea level. Because of that Zulawy has an impressive. melioration infrastructure – kilometers of channels, hundreds of small dams, lots of pumping stations
In 2010 Polish authorities decided to start the “Complex flood protection program – Zulawy 2030”. First part of this project should be realized until end of 2015 with a budget of about 45,000,000 EUR. The program has 5 main beneficiaries: RZGW Gdansk, ZMiUW Gdansk, ZZMiUW Elblag, City of Gdansk and City of Elblag. The main tasks for whole program are:

  • Modernization of 400 km of river banks
  • Construction (or reconstruction) of about 60 pumping stations
  • Modernization of about 260 km rivers and streams
  • Reconstruction of about 600 km of melioration channels
  • Set up a measuring system and an operations center with access to hydrological and meteorological data from the whole Zulawy region

The pilot station is supposed to transfer hydrological and meteorological data to a data centre in hourly intervals. For internal reporting purposes the pumping status (on/off, operating time) should be provided das well. The collected data should be visualized on an internet based platform
The solution consists of:

  • OTT LogoSens as heart of the station
  • 2 x CBS for water level measurement on both sides of a dam
  • OTT Pluvio² for reliable precipitation data
  • Thies WS WD wind sensors
  • Vaisala HMP45d as transmitter for temperature and humidity
  • Relays inputs to log the status of 3 pumps
  • Solar power supply
  • GPRS data transmission
  • Availability of real-time measurements in the Hydras 3 software
  • Dedicated www application
  • Steel cabinet with OTT LogoSens2, OTT CBS, OTT Solar and modem
