Ireland Groundwater Monitoring Program
To fulfill the EU Water Framework Directive (WFD) requirements, a groundwater monitoring program was established by the Environmental Protection Agency of Ireland. This program focues on providing information to assess the environmental status of surface and groundwater bodies. Read about the program and the example installation in the Bog of the Ring
OTT Orpheus Mini
Medición del nivel de agua subterránea y de la temperatura del agua con OTT Orpheus Mini
El recolector de datos de agua subterránea OTT Orpheus Mini convence por la calidad de sus componentes y por su ingenioso diseño. Mide de forma fiable el nivel y la temperatura del agua y se puede utilizar en tubos de nivel a partir de 1".
- Aguas superficiales Aguas subterráneas
- Instalación fija
- Sensor de presión relativa con célula de medición cerámica capacitiva
- Nivel (presión), temperatura de agua
- Para tubos de nivel a partir de 1", baterías de lito o pilas alcalinas que se pueden sustituir in situ
- 0 … 4, 10, 20, 40 y 100 m
- ± 0,05% FS
- Sí
The Environmental Protection Agency of Ireland operates 130 wells (5 with telemetry) and 24 springs with overflow measurement for the Ireland Groundwater Monitoring Program. Data collected from target monitoring sites is used to validate risk assessments and investigate long-term water level trends.
From analysis of the collected water level data, the Bog of the Ring was identified as a groundwater body at risk of declining water levels due to groundwater abstractions. In 2009 groundwater levels were still declining and the Bog of the Ring was classified as having a poor quantitative status. Therefore in 2010 actions were taken, including improvements to the public supply network and abstraction regime. In 2011 abstraction volumes declined from 3,500 m3/day to 2,500 m3/day.
Based on this general recovery in groundwater levels the Bog of the Ring may meet a Good Quantitative Status in 2015.
Sites were selected based on the conceptual understanding of hydrogeology and anthropogenic pressures within each groundwater body or group of bodies. Examples of site criteria include:
- Sites located across groundwater body or group of bodies to achieve a good spatial spread of data
- Recharge and discharge areas
- Areas with current or future planned abstraction
- Assessing the groundwater contribution to rivers from poorly productive aquifers

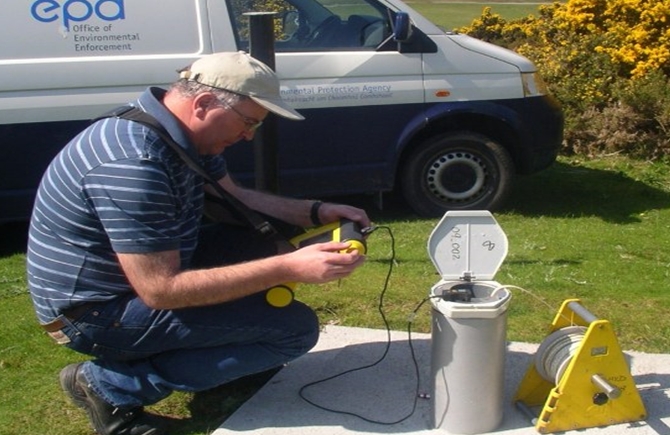

Hourly/sub-hourly measurements and data recording greatly enhance the understanding of aquifer responses in dynamic aquifer systems and the behavior relating to abstraction from public supply wells. The technical equipment to collect these data was deliverd and installed by OTT Hydromet:
- 131 monitoring locations were outfitted with OTT Orpheus Mini groundwater loggers in 2008-09, 5 of them in the Bog of the Ring
- 5 locations were outfitted with OTT Intelligent Top Caps for remote data transmission
- Water levels are measured and stored by the OTT Orpheus Mini every 15 minutes
